How to connect Motor wires to ESC

[kelles]

So i have the mamba monster 2 and the 2350 motor, where do i connect the motor wires on the ESC? I have seen 2 different setups.

Regarding the 2200kv motor with the coloured wires, i have seen some installing the white wire to the middle of the ESC,
but some others are installing it on one of the outer connections and the red wire in the middle.

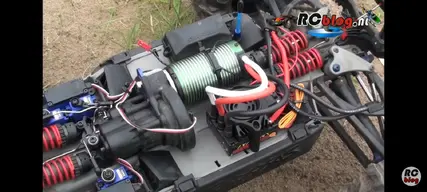

See 2 photos of the setups below

Which is correct?



[Jam 1]

So i have the mamba monster 2 and the 2350 motor, where do i connect the motor wires on the ESC? I have seen 2 different setups.

Regarding the 2200kv motor with the coloured wires, i have seen some installing the white wire to the middle of the ESC,
but some others are installing it on one of the outer connections and the red wire in the middle.

See 2 photos of the setups below

Which is correct?

Well I would have to default to what the manufacturer recommends, I know castle has a good helpline so possibly a call is in order



[Jam 1]

https://home.castlecreations.com/contact-us

click that link then select tech support to talk to a person



[kelles]

https://home.castlecreations.com/contact-us

click that link then select tech support to talk to a person

Thanks for the advice, i have already emailed them



[Sparky]

Thanks for the advice, i have already emailed them

Doesn’t matter which way you put the wires in, just reverse any 2 if the motor spins backwards



[kelles]

Doesn’t matter which way you put the wires in, just reverse any 2 if the motor spins backwards

Yes thats what castle said, this is the case for all sensorless motors
