Dad's dedication to Joseph Paul "Angel"

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, and others.
JoeGuam

JoeGuam

Well-Known Member
Messages
893
Location
Virginia

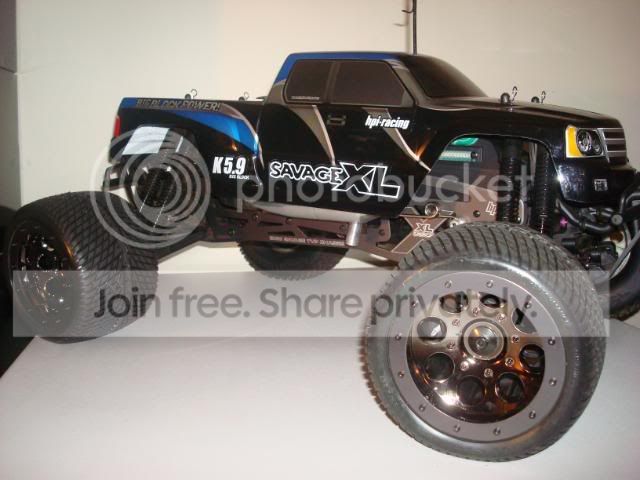

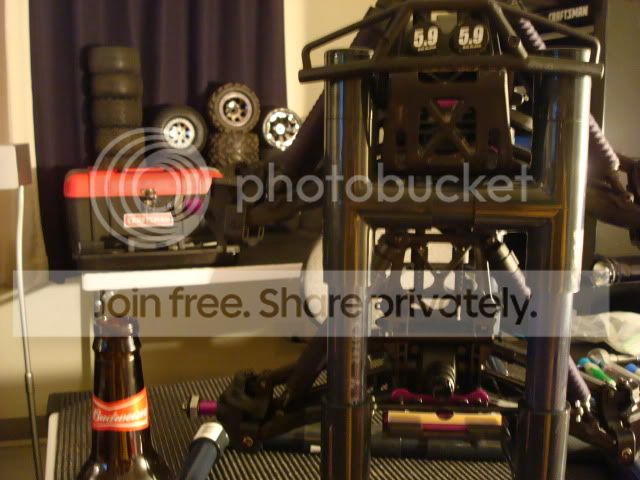

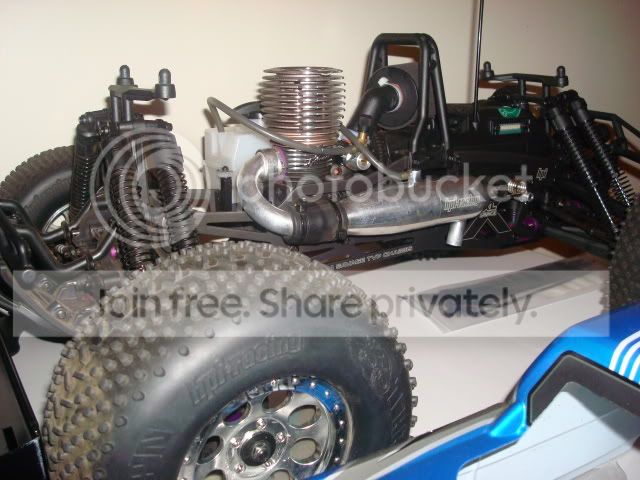

THE BEGINNING SAVAGE XL 5.9



END


START TO A MID TANK BUILD AND MODIFICATION

Part list
Ofna .28 Picco w/Pull Start $199.99
ERCM Modified $120
ERCM Pipe $130
HPI 87245 suspension conversion $150
FLM45100 Extended Low Center of Gravity $60
FLM46000 Savage Servo Mounts (2) $6
FLM45110 Savage Center EXT Skid Plate$12
FLM45800 - FLM Motor Mount/ Engine Mount $20
FLM47500 Skid Brace (2)$3 ea
FLM48000 Drag Link $7
FLM45700 Motor Plate$11
FLM45500 Savage Servo Plate, aluminum$12.95
FLM40010 XL Hybrid Bulkheads$72.00
FLM44000Savage diff cup $18
FLM43000 Savage shock tower(2) $24 ea
PRC125-HPI Savage OFNA Mid-Tank Kit 34.80
HPI Steering Linkage Set Baja $10.29
HPI Steering Upgrade Set Savage $13.99
Associated DS1015 Hi Torque/Hi Speed Digital Servo $89.99
Integy Super Lightweight Antenna Mount Black $3.79
DYN2518 McCoy MC-8 Medium Cold Glow Plug (2) $14.70 ea
McCoy MC-59 Hot Glow Plug (2)$11.44 ea
HPI87055 HPI Dual Fiberglass Brake Disc Plate Set$11.25
HPI85239 HPI Roll Bar Set$11.25
MUGB0318 Mugen Silicone Differential Oil (30,000wt) (50ml) $8.25
HPIB032 HPI Ball Bearing, 10x16x5mm (2) (Savage/Savage X) $5.09
HPI86129 HPI Roll Bar (Savage) $12.75
RCE10380BK Racers Edge Aluminum Pro Adjustable Single Arm Futaba Servo Horn (Black) (2) $10.25 ea
MSFSAV100 Motor Saver Filters Large Air Filter: SAV, SAVX, SAVXL$16.06
MSF8FM2 Motor Saver Foam Air Filter Element 1/8 Off-Road w/Large Center Hole (2) $6.99
PRO6005-02 Pro-Line Premium Blend CA Tire Glue (Medium, 15-20 sec) (3) $8.49ea
HPI102692HPI "Bulletproof" Ring/Pinion Gear Set (29T/9T) (2) $36ea
HPI102538 HPI Front & Rear Sway Bar Set $23.99
HPI6811 HPI O-Ring 6x9.5x2mm Black (8) $2.59
FIO-OT-FR70 Fioroni Turbo Sliding Clutch System $53.99
DYNP5180 Dynamite Max-life Aluminum Clutch Shoe Set$15.39
MUGC0708 Mugen Seiki USA Clutch Spring 1mm (3): MBX5/MBX6$5.40
MUGC0704 Mugen Seiki USA Engine Nut, Sg: MBX5/MTX2/MBX6$8.55
HPI86271 Hobby Products International Flywheel, S25,SAVX,SAVXL$7.42
HPI87049 Hobby Products International Shaped Exhaust Gasket (2): S21, S25, SAVX,HF,SAVXL $ 2.48
HPI100323 HPI Battery Box/Skid Plate Set $6.95
OFN10731 Ofna Alum Servo Arm Univ Blue $4.95
OFN19504 Ofna Fuel Tank 1/7 Scale $13.95
OFN10704 Ofna Linkage Sliders Kit Blue (2) $2.75
OFN10724 Ofna Servo Linkage Kit Blue $6.95
RPM80052 RPM Receiver Box Black GT $9.25
OFN100561/8th IN-LINE PIPE, POLISHED, OFNA 086, tuned for top end $54.95
PRO113200 Maxx Badlands MT Tires for Maxx Rims-with inserts (4) $39.90
JCI3310 Half-Up 1/8th Truggy 3.7" Rims-white, 1/2" offset (4) $17.95
HPI3251 Savage X/Hellfire Tremor 115mm Rims, black (4) $29.90
HPI4886 Phaltline Tires for 115mm rims (4) $35.90
TRX5627 E-Revo/Summit Battery Compartment Door (2) $7.90
ASC89437 SC8 Exhaust Deflector $4.95
E827 B2R MANIFOLD KIT FOR SAVAGE 1 $22.99 $22.99
EA02SS STAINLESS STEEL MANIFOLD SPRINGS (3) 1 $4.99 $4.99
EA03Ma MANIFOLD GASKET, MEDIUM (2) 1 $4.00 $4.00
GPM SAV1032 Front/Rear Body mount (2) $20
GPM SAV1325 Fuel valve mount $15
FF0007CEN battery and receiver box $9
Shipping minimum $300

Missed some parts but this is a good base.

Main HPISF personnel who guided me

Bob "orcusomega" First to welcome me and entertain my questions. Lead me to FLM base setup decision.

Robin "Purenitro" Gave him a headache. Provided me technical information and answered alot of questions even without me purchasing a motor and pipe.

Justin "Bankrupter" and Hypnotiq. Technical information. <--- contributors to my spending frenzy... LOL I aint counting so no worries.

I have been taking pictures and I will soon post.

orcusomega said:
LOL Joe, take me off that list man, I didn't do anything but ask you questions, you lead yourself to the answer :)

Bob
Click to expand...

Your humble. The build is sharp with the FLM, but once it touches dirt it will be another story.
There are many that help me but I thought I give credit to the ones I asked the most questions.

Wow that's some shopping list man! I use alot of those parts and you wont be dissapointed with them.

Just curious as to why your ordering the FLM servo plate and the PRC mid-tank kit, pretty sure you wont need them both ;)

Aswell as the Dyna max life 3 shoe clutch set up and a Fioroni sliding clutch?

Are you going to test which is better for your set up?

Londoner said:
Wow that's some shopping list man! I use alot of those parts and you wont be dissapointed with them.
Just curious as to why your ordering the FLM servo plate and the PRC mid-tank kit, pretty sure you wont need them both ;)
As well as the Dyna max life 3 shoe clutch set up and a Fioroni sliding clutch?
Are you going to test which is better for your set up?
Click to expand...
It gives me the option of switching between the 250cc and 150cc.
The clutches were another option to play with. Many people gave good reveiws of both.

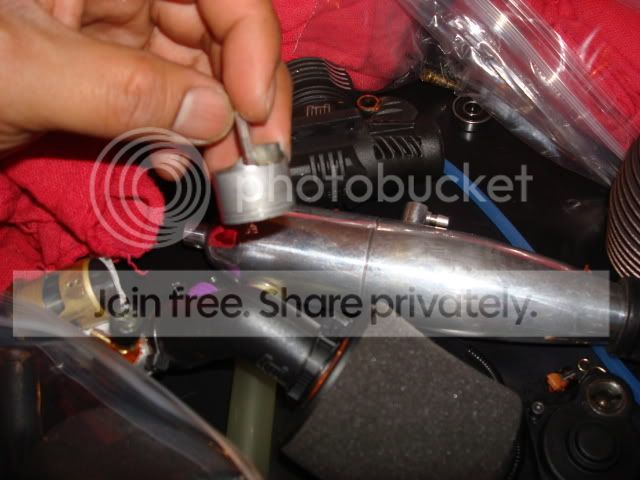

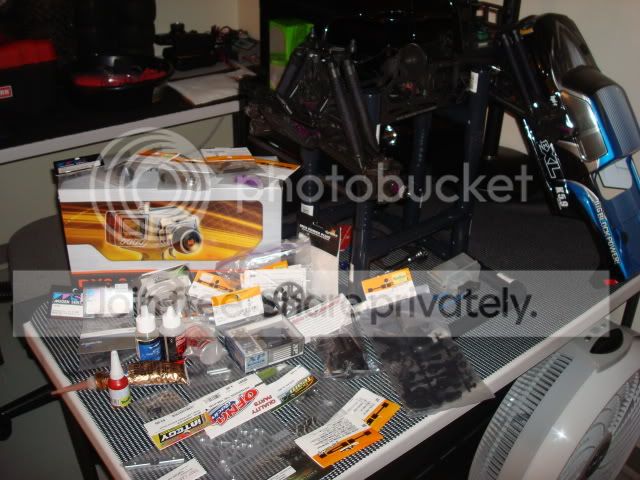

Some of the items I purchased. Going with the Specktrum DX3.




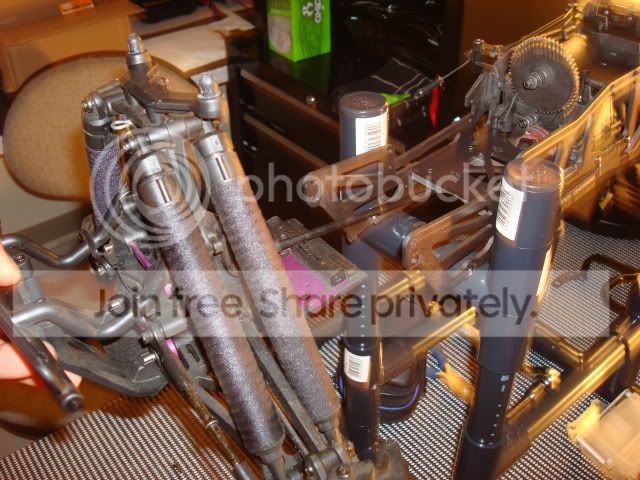

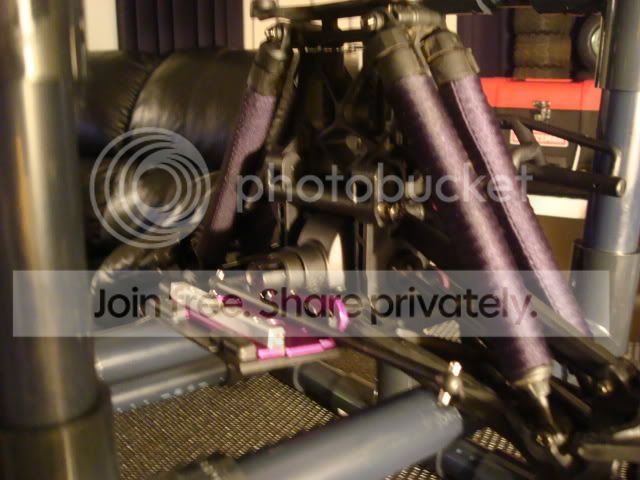

Disassembly of the rear. I removed the screws (2) from TVP to bulkheads, and the (2) screws from the TVP to TVP Brace.


I'm here to make others rich! thanks for helping my quest...

lol it is looking good keep up the mission. Joseph Paul will be with you for its first run. Make him proud!

looks like you got things figured out. all quality parts, you had some good help my friend. and bank nice job spending yet another members money. lol

I will post a few more pictures once I get home from work. Had a headache trying to list all the parts I ordered and taking a picture of every part I have.

Man can't wait to see this bad boi come together!!

I gotta comment on the list caz i don't think I've EVER seen anything quite like it.

yeah, keep the pics flowing so we can see.

suscribed....
That is one impressive list! You say you haven't added up... if you want i can do it for you :)

Looks like bank knows how to help you spend money!

Took out plastice tvp brace and replace with FLM47500 Skid Brace srews used are M4 10 to secure in place





Dog bone pictured which is included FLM45100 Extended Low Center of Gravity TVP



Working on the Sav.... having a bud... Nice1

I did the same thing but replaced them with these



should be standard on all savages i think!

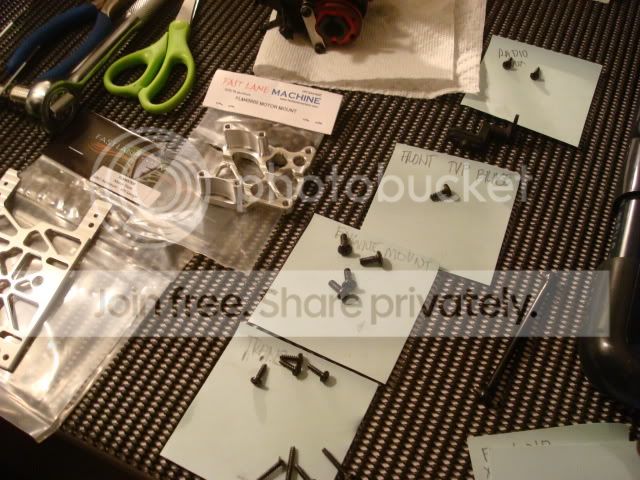

Disassembly of Transmission and Motor plate. Install FLM45800 - FLM Motor Mount/ Engine Mount and FLM45700 Motor Plate. I had labeled the screws so I know where they belong for future reference.



Before I connected the transmission to the motor plate I went ahead and replaced the HPI87055 HPI Dual Fiberglass Brake Disc, 86930 steel brake cam, 77127 Spur gear (47), and 87042 spring and washer for spur gear. I tightened the screw all the down then back out 1/4 turn out for now.



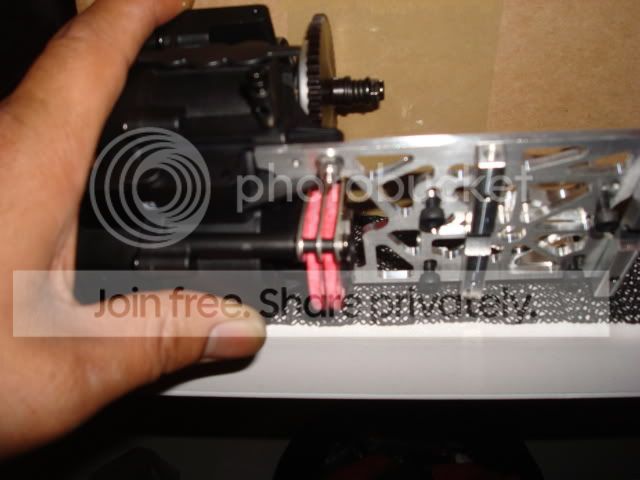

Assembled the transmission and motor plate/motor mount together and used M3 12 screws and M3 lock nut for a solid mount.



All the parts that were removed and still serviceable were inserted into the the package of the part it was replaced with.

I noticed something that i might steal off you.. The way you attached the tranny to the motor plate. Screw and nut... Great way to prevent any movment between the gears! Nice idea!

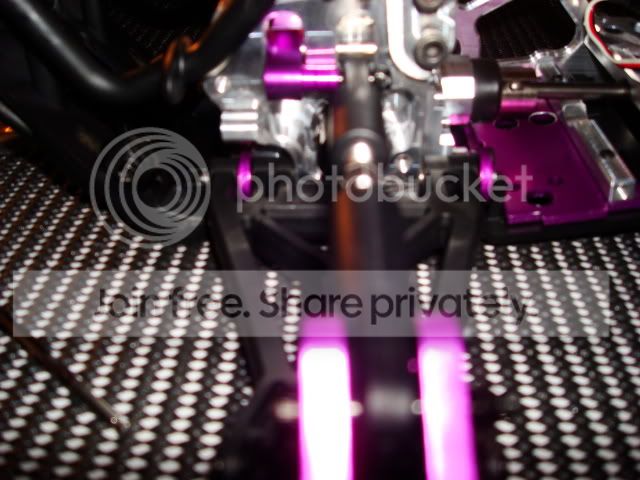

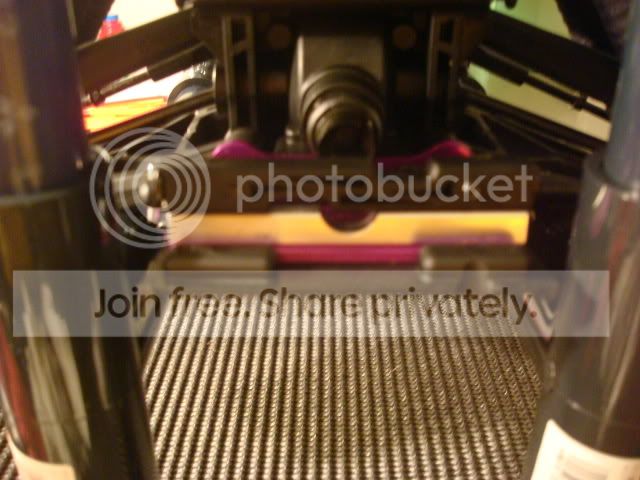

Another look from the bottom

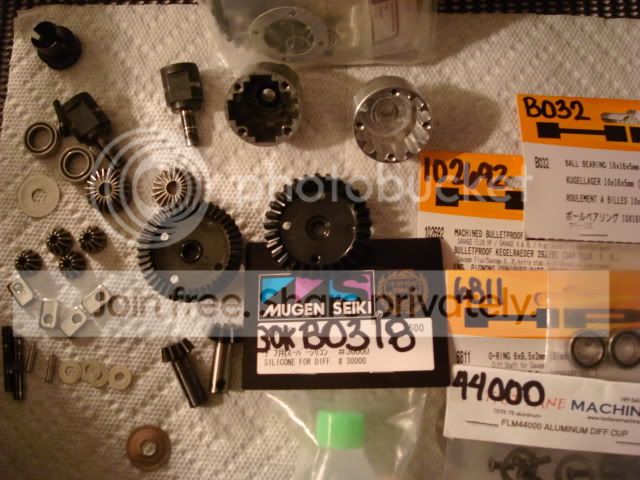

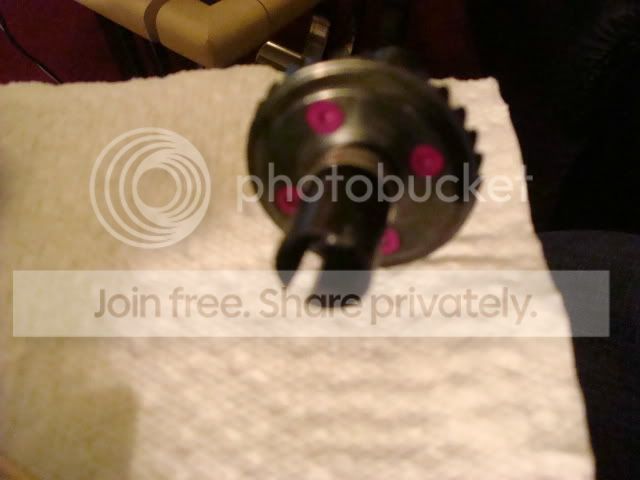

Now to put the Motor and transmission aside to work on the BP Diff. I used every thing except the FLM 4400O. It will not work as the diff cups are for all other savages except XL and Flux (stock)



After several attempts of assembly, shim, fit, disassemble...Blah Blah. You know the deal if you ever done one. 30k Mugen diff oil in front and 10K hpi diff oil in the rear.


J1A1H said:
I noticed something that i might steal off you.. The way you attached the tranny to the motor plate. Screw and nut... Great way to prevent any movment between the gears! Nice idea!
Click to expand...

When I used the stock screws no nut with stock XL set up, it wiggled too much so I went with this route for a solid mount. Of course use it.

After several attempts of assembly, shim, fit, disassemble...Blah Blah. You know the deal if you ever done one. 30k Mugen diff oil in front and 10K hpi diff oil in the rear.

[/QUOTE]

Forgot, when you put the diffs back into bulk head use this tread to ensure it is installed in the correct direction.
https://www.hpisavageforum.com/forums/showthread.php?t=12764

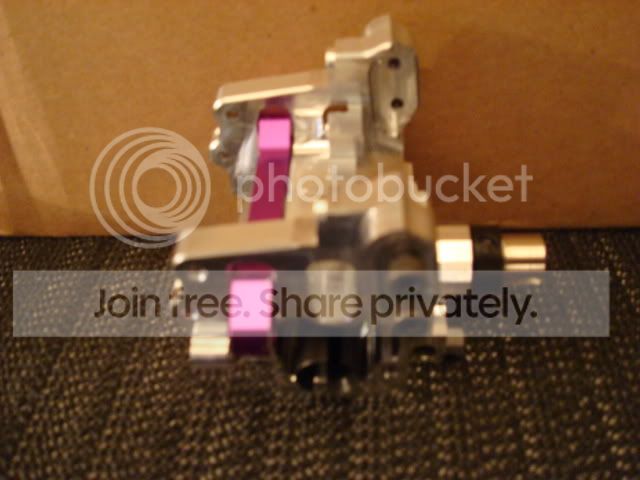

Bulkheads

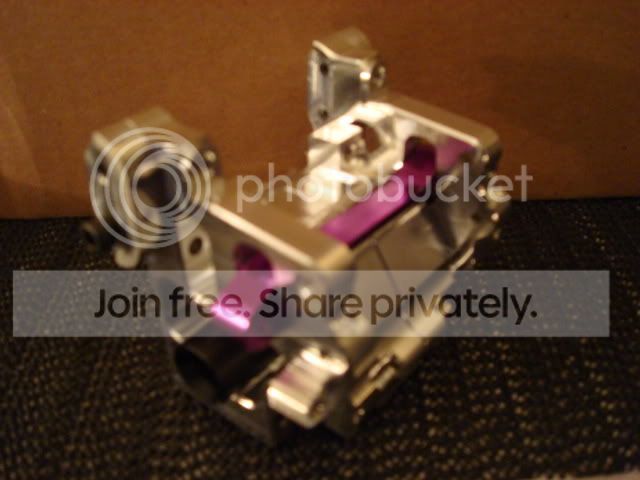

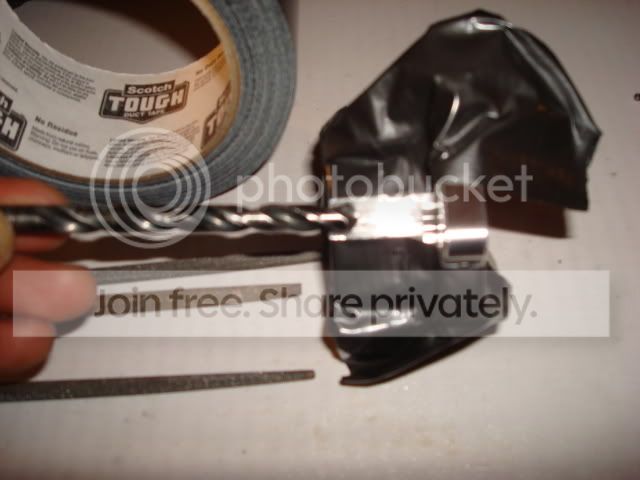

I prepped the FLM40010 XL Hybrid Bulkheads and #86374 upper arm brace(if buying separate from RSC kit) by placing duct tape around the areas where I drilled, cut, grinded, and filed. This alleviates scuffing up the parts where it is not need. I did not take the picture when i grinded the arm brace.

1st: I used a 6mm drill bit leaving approx 1/12 of an inch slot. This gave me a guide when I filed the rest of the area to receive the arm brace. This took about 30 mins per set of bulkhead.


2nd: I filed the until the brace and shaft are able to fit properly without binding. Eventually you will fiel the rest of the 1/12 slot off and uniquely the area will look clean and need no further work.





3rd: Fit time. What I noticed is that when using the FLM bulkhead you have to add (2) medium size and (1) small spacer per side of arm brace to align arm perpendicular to bulkhead and taking away any binding between the bulkhead and upper adjustable arm. The instructions for the RSC is for HPI bulkheads and only come with enough spacers for the HPI bulkheads. I had to ask the hobby shop to give me extras FOR FREE.




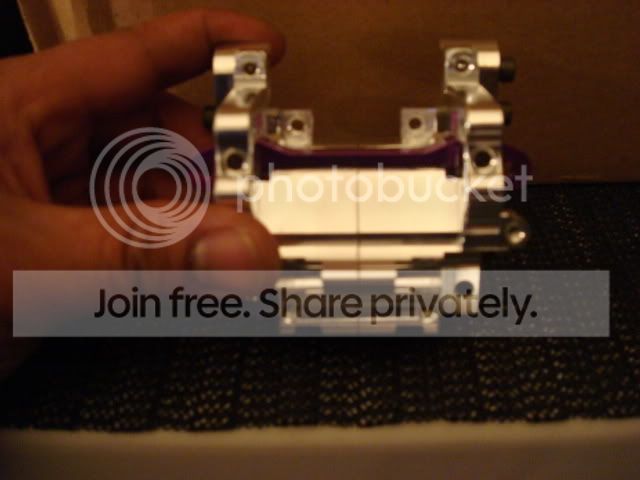

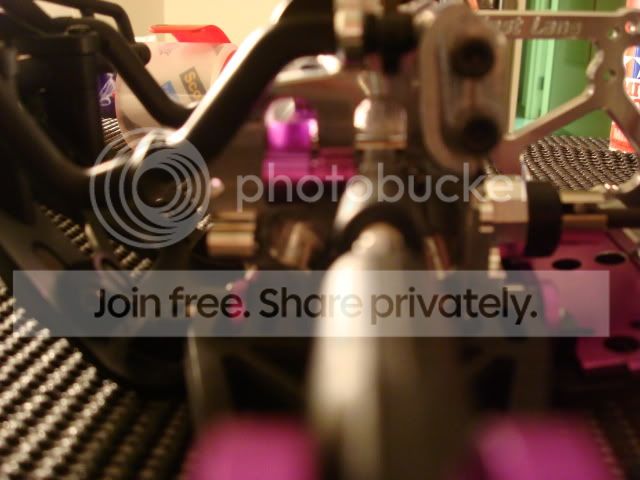

As seen the adjustable arms is centered to the port.



You can take a look at how Justin (BANKRUPTER) did his. https://www.hpisavageforum.com/forums/showthread.php?t=12786&highlight=flm+bulkhead. Use soem type of eye protection while you modify the parts and gloves to protect your hands.

Joe, sweet build.

you make it look like you been buildin savages all yo life. army
